Air circuit breakers

Air Circuit Breaker products get their name from the fact that their breaking chambers are in the open air to allow better energy
dissipation. Their electrical and mechanical strength, breaking capacity,maintainability and accessories make them ideal for protection for low voltage installations.

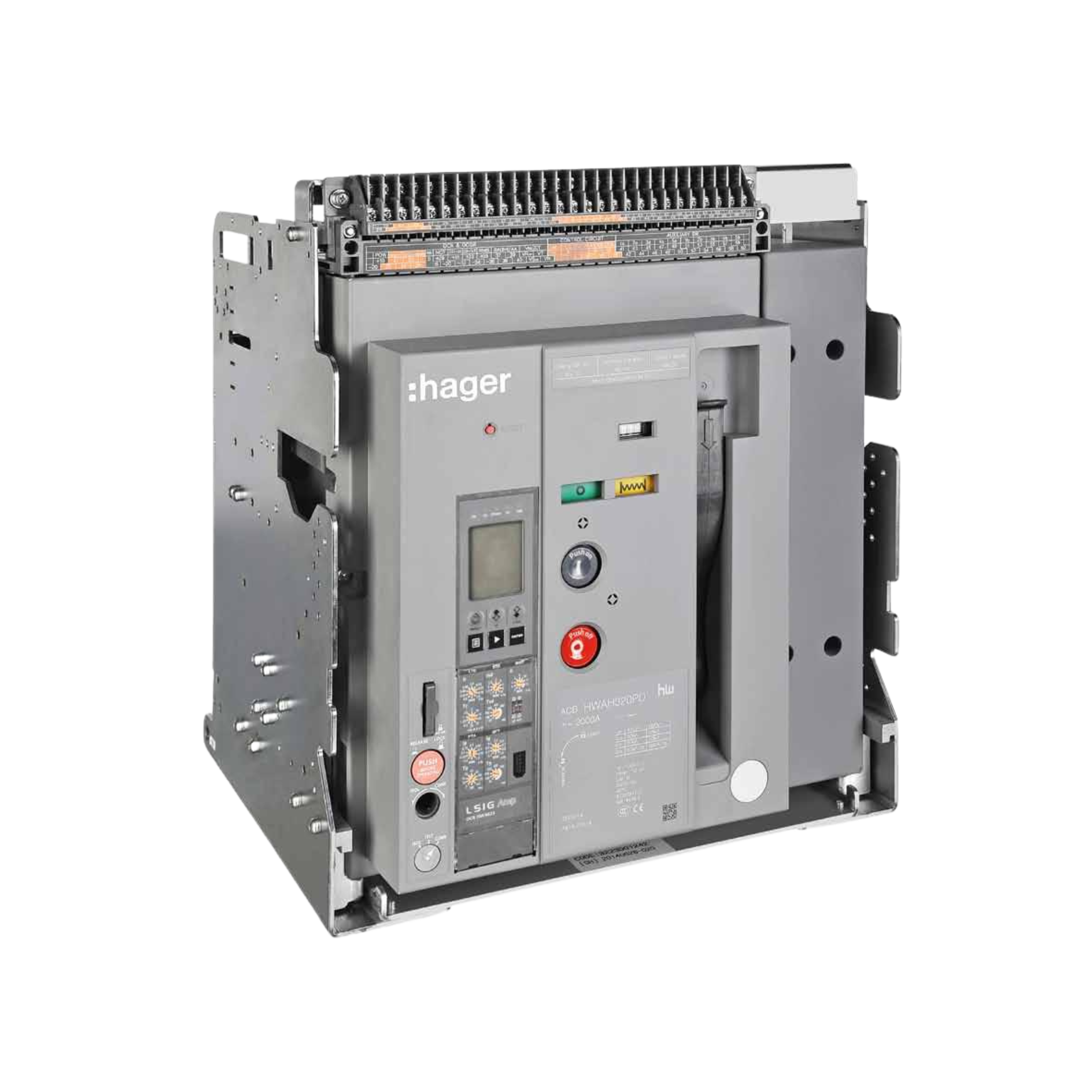

The ACB HW offers protection trip unit (OCR) functions and, in the event of tripping, controls the opening of the circuit-breaker, preventing it from closing again unless it has been reset by the operator.

• High breaking capacity: full range Icu=Ics
• Optimized and compact panel size: same height and depth
• Terminal connection flexibility: horizontal/vertical terminal easy to turn at 90°
• Quick and easy mounting of accessories
• OCR: integrated communication, remote reset, ZSI, Temperature alarm
• Reliable information: fault LED info keep 1 month, fault record
• Advanced protection: low load, unbalance voltage, reserve
  power, low/over voltage protection
• Advanced metering: ammeter, voltage, power, energy, demand…

Technical data

• Comply with IEC 60947-2 and GB14048.2
• Rated current range: 630-5000A with 3 frames
• Breaking capacity: 50, 65, 85,100kA
• Rated voltage: 690V
• Insulated voltage: 1000V
• Impulse voltage: 12KV
• Switch Disconnector
• 3 kinds of OCR: Basic, Amp, Energy
