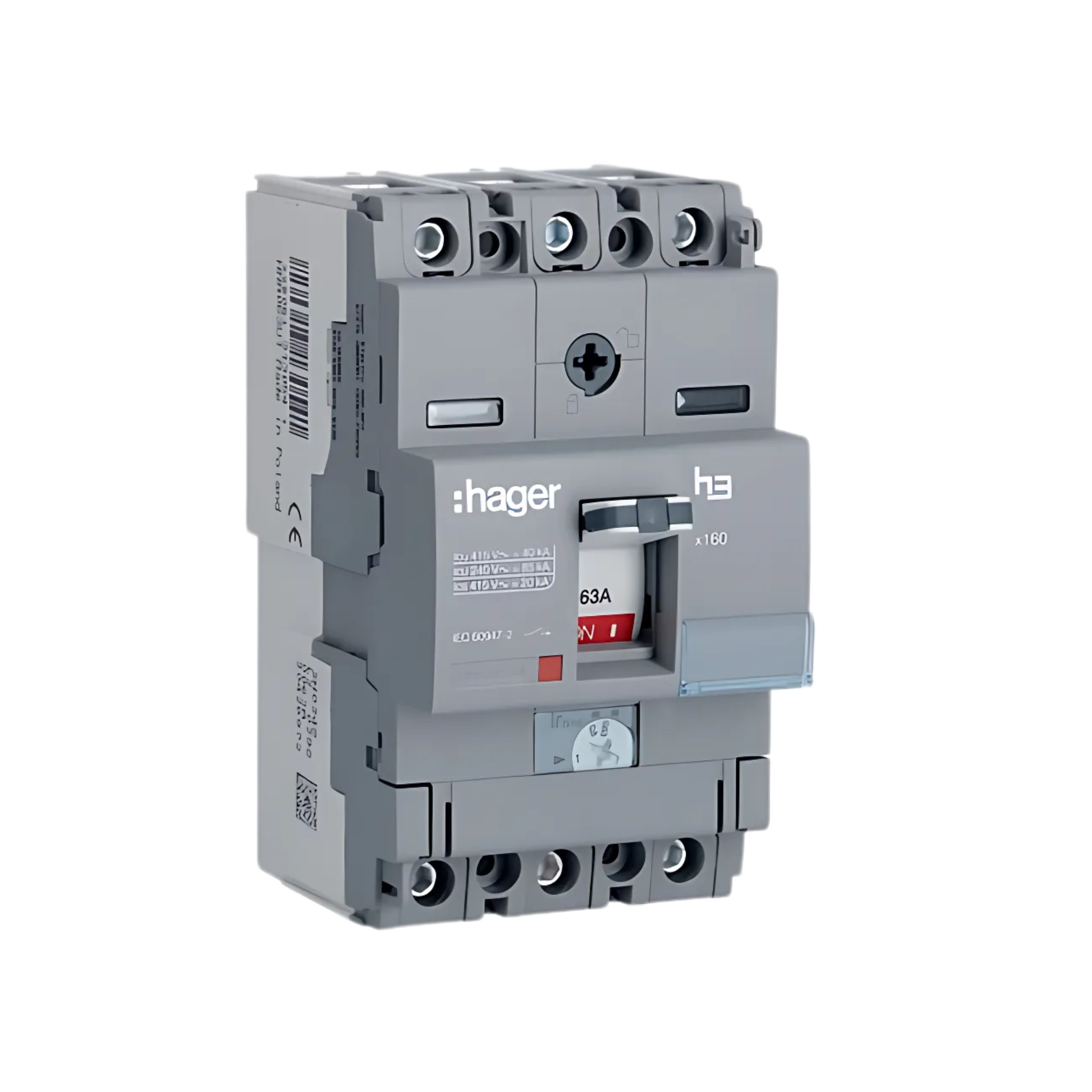

Modular case circuit breaker

The new range of moulded case circuit breakers provides solutions suitable for electrical installations in commercial buildings. It offers reliable protection against overloads and short circuits.

The multiple setting options, created by coordinating the protection systems, offer the best possible combinations. This brings a threefold benefit: guaranteeing user and equipment safety under all conditions, ensuring continuity of service and availability of energy in normal operating situations, and, in case of transient faults, reducing the risks to the installation’s components.

All products in the new range can be easily integrated in the hager enclosure systems.

Most compact product on the market with measurement and communication.

• From 25 to 630 A
• Three frame sizes
• Can be mounted on the DIN rail in
  option up to 250 A
• TM, MAG, LSnI, LSI, LSIG and Energy trip units
• Breaking capacity of 25, 40, 50, 70 and 110 kA at 415 VAC
• 3P3D or 4P4D (neutral adjustable to 0, 50 or 100 %)
• Wide range of auxiliaries and accessories
• Horizontal or vertical installation
